Types of Aluminum Alloy Warehouse Tents

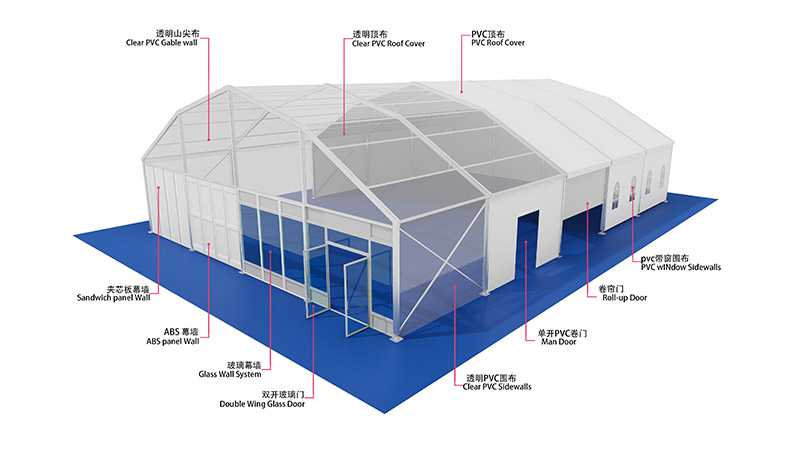

- Polygon Aluminum Alloy Warehouse Tent

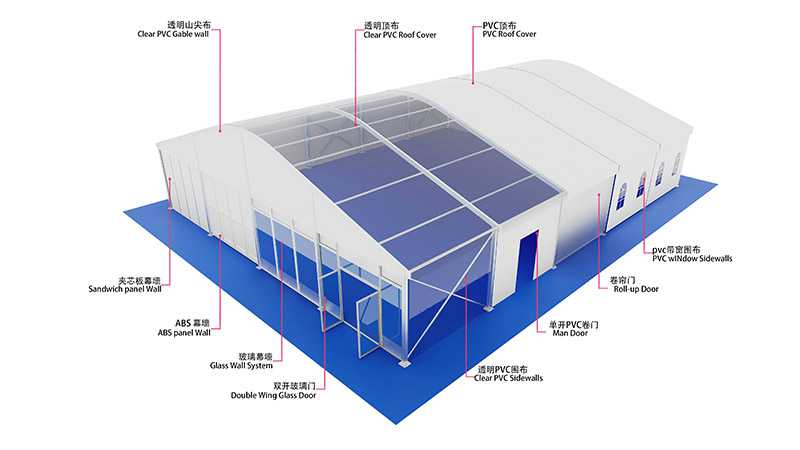

- Arcum Aluminum Alloy Warehouse Tent

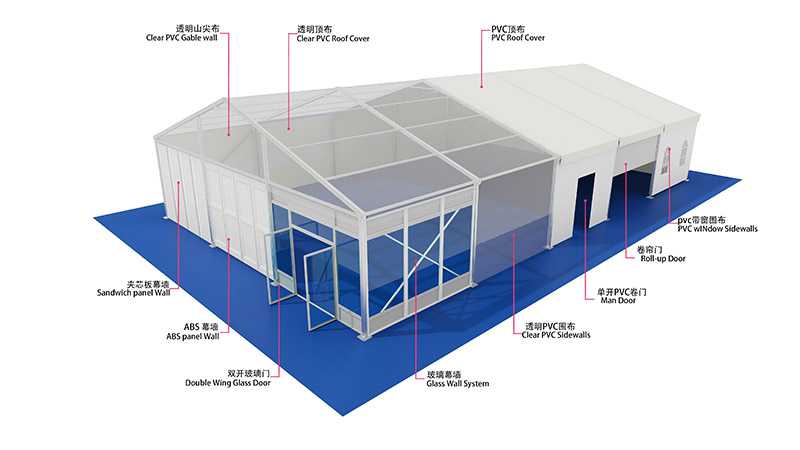

- A-Frame Aluminum Alloy Warehouse Tent

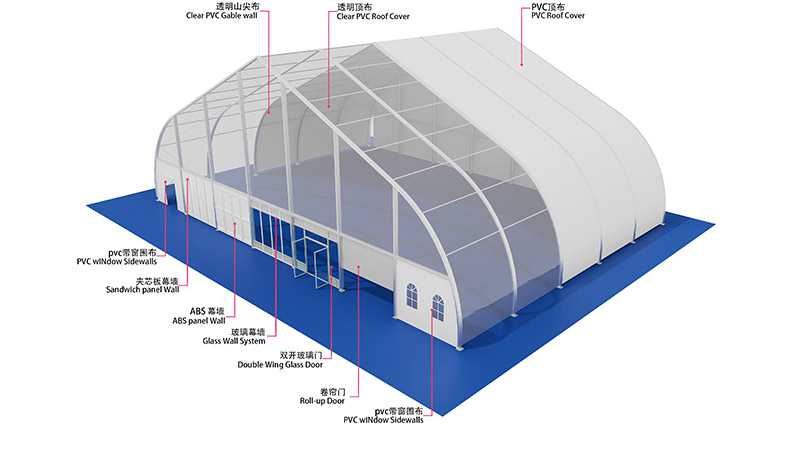

- Curve Aluminum Alloy Warehouse Tent
- Adopts integrated Polygon aluminum truss frame, uniform force distribution and outstanding snow load bearing capacity.
- Streamlined Polygon surface diverts airflow efficiently, effectively reduces wind load for open-air storage yards.
- Large clear-span space with no internal support columns, maximizing stacking and forklift operation area.
- Integrated segmented Arcum aluminum frame optimizes aerodynamic performance, great for coastal windy storage sites.
- Thickened welded aluminum Arcum truss boosts structural rigidity, adapts to heavy rain, snow and strong gale environments.
- Customizable span and side height flexibly, applicable for parts warehouse and large machinery storage.
- Classic triangular A-shaped aluminum truss features stable mechanical structure and reliable wind & snow resistance.
- Cost-effective aluminum frame with lower manufacturing, transportation and on-site construction expenses.
- Modular design enables quick assembly and disassembly, convenient to relocate for temporary storage yards.
- Exclusive curve streamlined aluminum frame greatly cuts wind resistance coefficient, stable in open yards with cross winds.
- Reinforced thick aluminum truss enhances overall load capacity, resists harsh weather with heavy snow and strong winds.
- Ultra-wide customizable clear span without inner pillars, offering ample space for bulk cargo and container storage.
Popular Common Sizes of Warehouse Tents
A-Frame Warehouse Tent
Arcum Warehouse Tent
Curve Warehouse Tent
Polygon Warehouse Tent
| Item | Specification | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Clear-span width | 10m | 12m | 15m | 20m | 25m | 30m | 40m | 45m | 50m |
| Ridge height | 5.84m | 6.16m | 7.6m | 8.4m | 9.2m | 8.9m | 10.5m | 11.38m | 12m |
| Longest component | 5.4m | 6.4m | 8.1m | 11m | 10m | ||||
| Eave height | 4.2m | 4.2m | 5.2m | 4m | |||||
| Roof pitch | 18° | 18° | 18.5° | 18° | |||||
| Minimum tent length | 5m | 25m | 40m | 40m | |||||
| Bay distance | 5m | ||||||||
| Roof fixing | Bar tensioning | ||||||||
| Main profile | 204×120×4mm (4-channel) | 256×121×5mm (4-channel) | 300×120×5mm (4-channel) | 350×120×5mm (4-channel) | |||||
| Wind loading | 100km/h, 0.5kn/㎡ | ||||||||
| Eave connection | Hot-dip Galvanized twin steel Plate | ||||||||
| Framework material | Hard pressed extruded aluminium 6061/T6(15HW) | ||||||||
| Item | Specification |
|---|---|
| Clear-span width | 15m / 18m / 20m / 25m / 30m / 40m |
| Eave height | 4m (all span sizes) |
| Top height | 8.75m(15m) / 9.15m(18m) / 9.42m(20m) / 11.72m(25m) / 13.2m(30m) / 15.4m(40m) |
| Bay distance | 5m |
| Roof pitch | 45° |
| Main profile | 204×120×4mm / 256×121×5mm / 300×120×5mm |
| Roof fixing | Bar tensioning |
| Wind loading | 100km/h |
| Framework material | Hard pressed extruded aluminium 6061/T6 (15HW) |
| Item | Specification | ||||
|---|---|---|---|---|---|
| Clear-span width | 15m | 20m | 25m | 30m | 40m |
| Ridge height | 8m | 8.8m | 9.9m | 11.2m | 13.5m |
| Eave height | 3.87m | 3.89m | |||
| Longest component | 7m | 7.1m | 9.85m | 11.8m | |
| Roof pitch | 25° | ||||
| Main profile | 204x120x4mm (4-channel) | 300x120x5mm (4-channel) | |||
| Bay distance | 5m | ||||
| Minimum tent length | 20m | ||||
| Roof fixing | Bar tensioning | ||||
| Wind loading | 100km/h, 0.5kn/㎡ | ||||
| Framework material | Hard pressed extruded aluminium 6061/T6 (15HW) | ||||
| Item | Specification | ||||
|---|---|---|---|---|---|
| Clear-span width | 15m | 20m | 25m | 30m | 40m |
| Ridge height | 5.4m | 6.3m | 7.15m | 7.87m | 9.6m |
| Main profile | 300x120x5mm (4-channel) | 300x120x5mm (4-channel) | |||
| Roof fixing | Bar tensioning | ||||
| Eave height | 3.92m | ||||
| Roof pitch | 18° | ||||
| Bay distance | 5m | ||||
| Longest component | 10m | ||||
| Minimum tent length | 20m | ||||
| Wind loading | 100km/h, 0.5kn/㎡ | ||||
| Framework material | Hard pressed extruded aluminium 6061/T6 (15HW) | ||||
Types of Truss Warehouse Tents

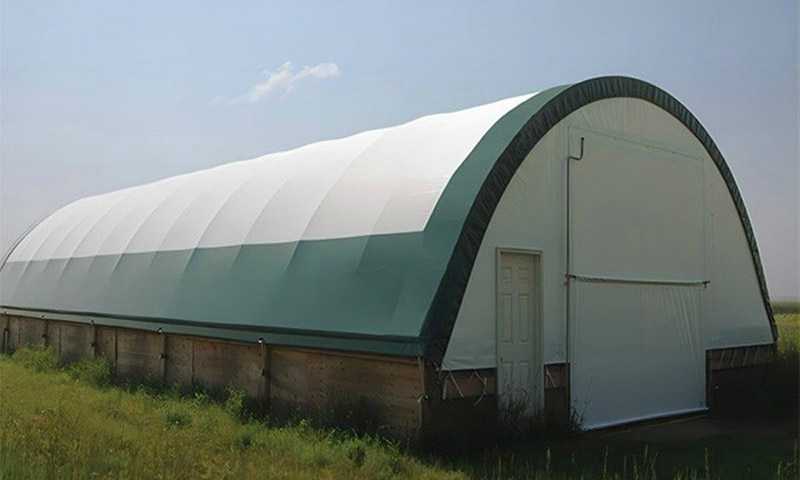

- Polygon Truss Warehouse Tent

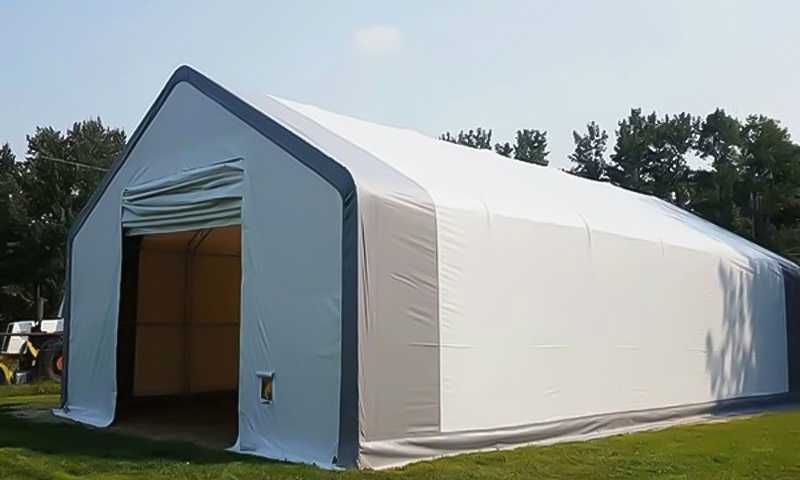

- A-Frame Truss Warehouse Tent

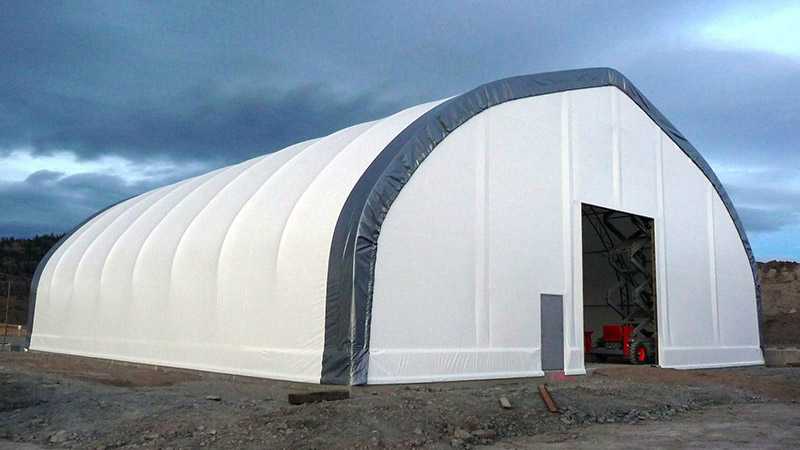

- Curve Truss Warehouse Tent
- Continuous arch streamline design to divert airflow, greatly reduce wind load accumulation on the tent body.
- Integrated arch truss bearing system with outstanding snow load performance, suitable for heavy snow storage areas.
- Large clear span without inner support columns, maximize space for forklift operation and bulk cargo stacking.
- Adopts classic triangular A-shaped truss frame, excellent mechanical stability and strong load-bearing capacity.
- Cost-effective with lower frame production and on-site construction costs.
- Simple modular assembly & disassembly, easy to relocate for temporary storage yards.
- Specially engineered curved streamline profile dramatically reduces drag coefficient, super stable for windy open storage yards.
- Reinforced thick truss enhances overall load capacity, withstand extreme weather of heavy snow and strong crosswind.
- Extra large customizable clear span without inner pillars, provide spacious operation space for large cargo storage.
Popular Common Sizes of Truss Warehouse Tents
| Item | Specification |
|---|---|
| Frame | Hard pressed extruded galvanized steel, Surface Anodized Finish, Anti rust |
| Wind Resistance | 70~100km/h |
| Fixing Solution | Ground anchor, expandable bolt, weight plate, etc. |
| Service Life | More than 15 years |
| Applicable temperature range | -30 degree Celsius ~ +70 degree Celsius |

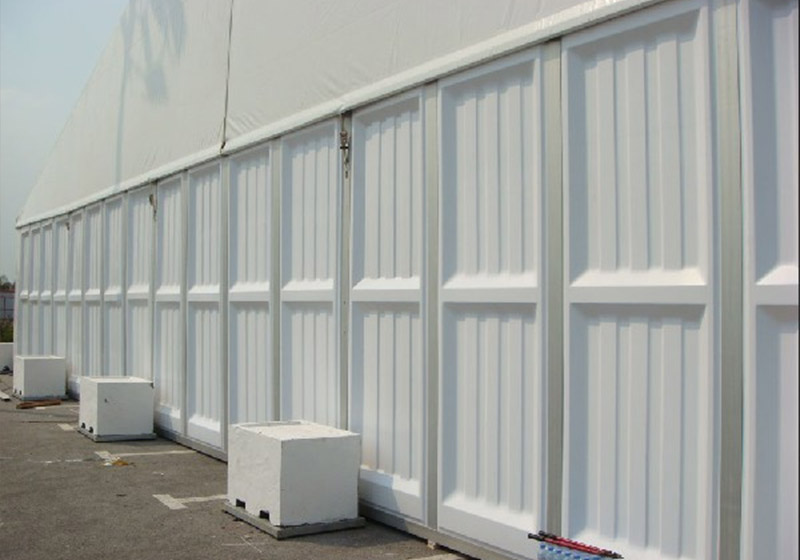

| Side Wall | White color, PVC-coated Polyester, Translucent, water proof, 650g/㎡. Flame retardant PVC walls, glass wall, ABS wall, etc. |
| Ground Situation | Grassland, earth land, asphalt, cement ground, marble, etc |
| Roof Cover | White color, PVC-coated Polyester, Opaque, water proof, 850g/㎡. Flame retardant |
| Connectors | Hot-dip galvanized twin plate; expansion bolts to fix tent |
Modular Warehouse Tents Solutions

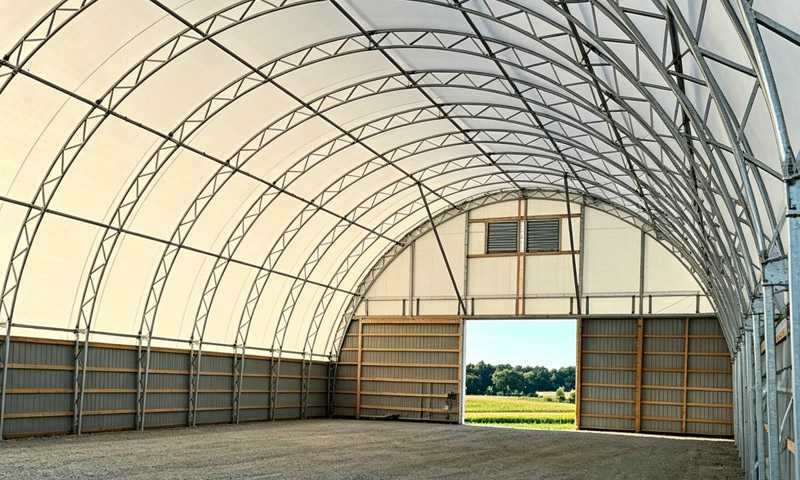

12.2m×24.4m Arcum Truss Industrial Warehouse Tent

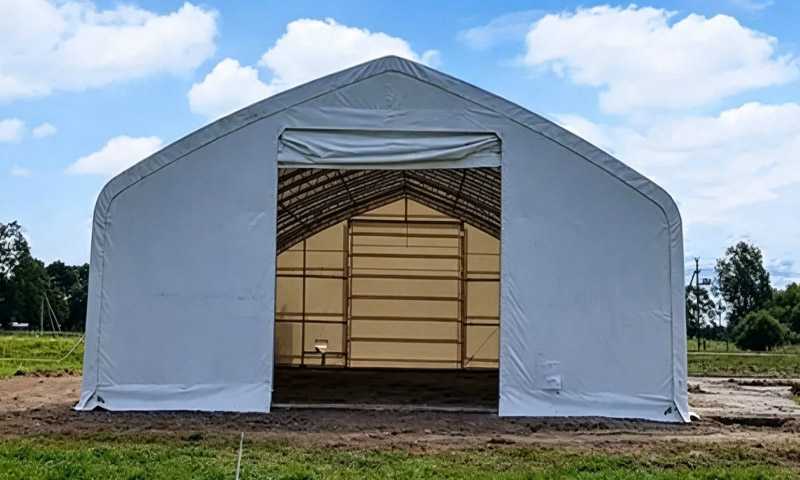

9.1m×18.28m A-Frame Truss Storage Tent

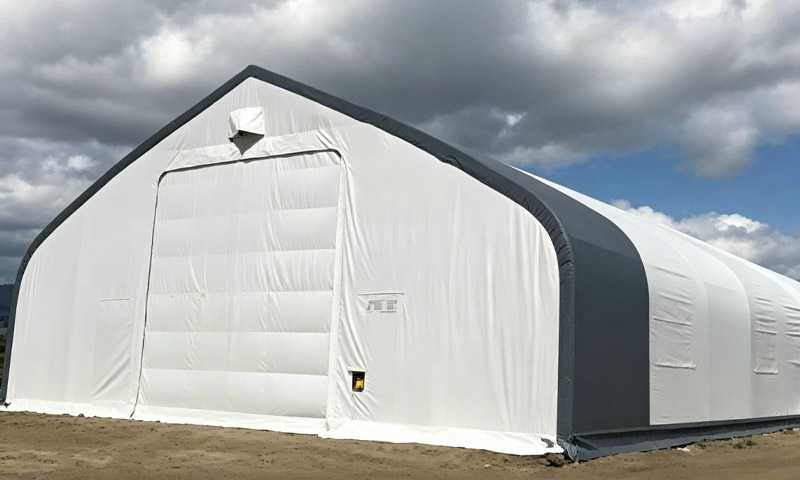

21.34m×42.7m Curve Truss Warehouse Tent

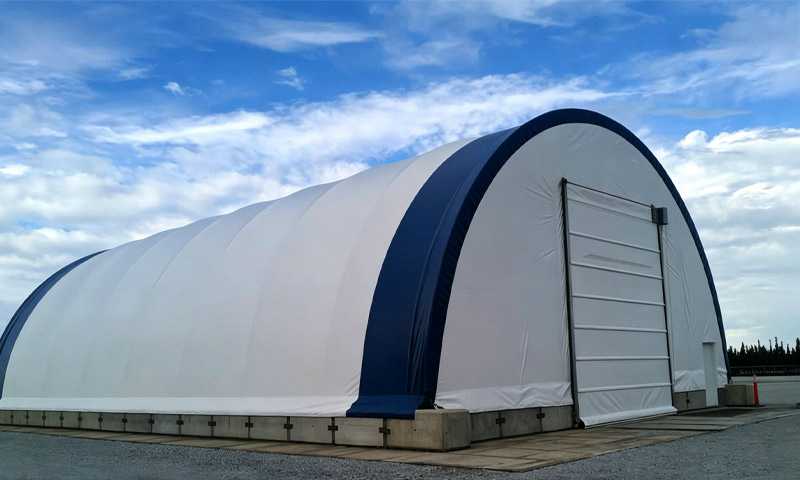

15.24m×30.48m Polygon Truss Storage Tent

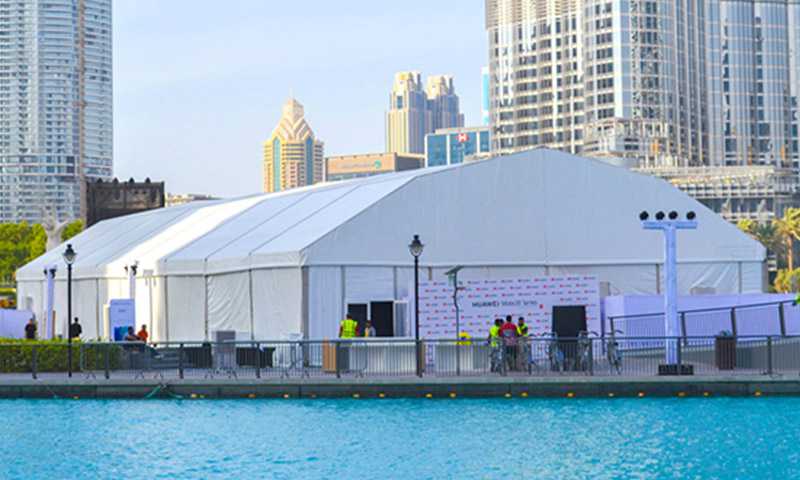

20×40m Polygon Aluminum Alloy Warehouse Tent

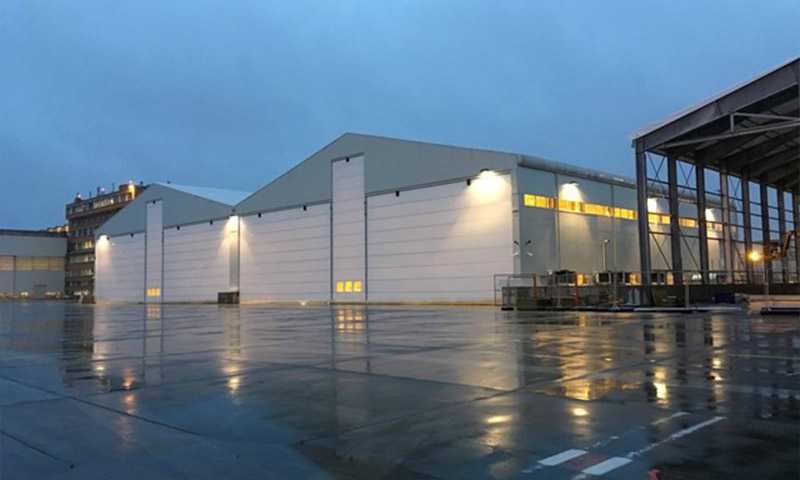

30×60m Industrial A-Frame Aluminum Warehouse Tent

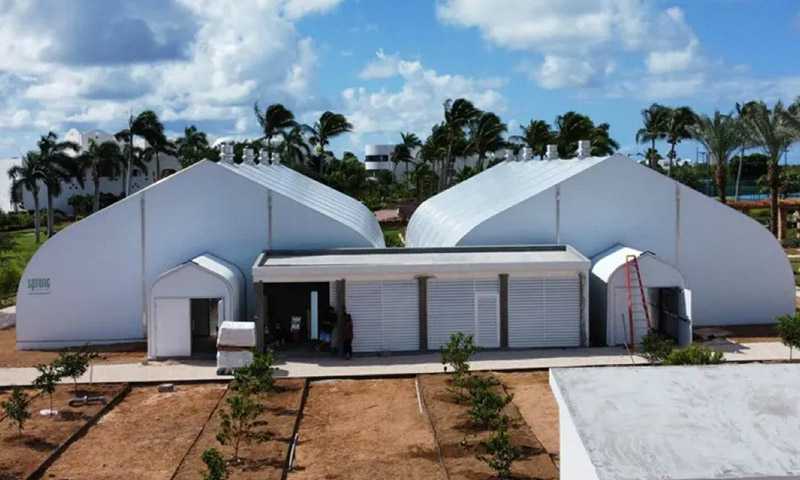

18×36m Agricultural Curve Aluminum Storage Tent

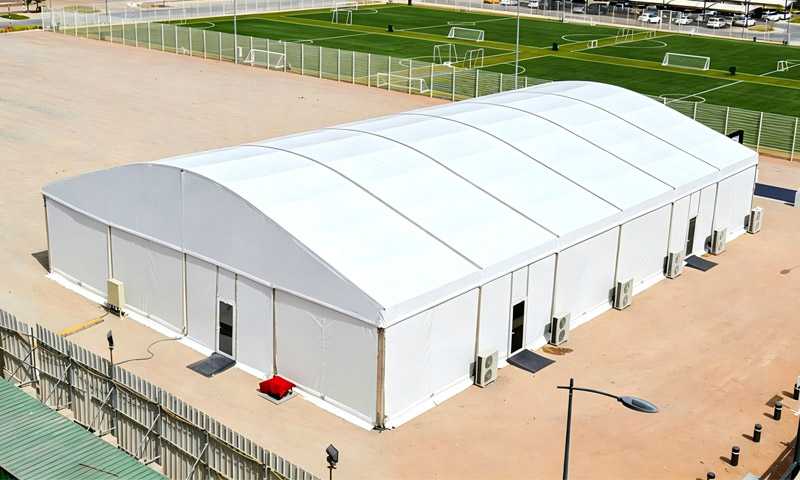

25×50m Arcum Aluminum Temporary Warehouse Tent

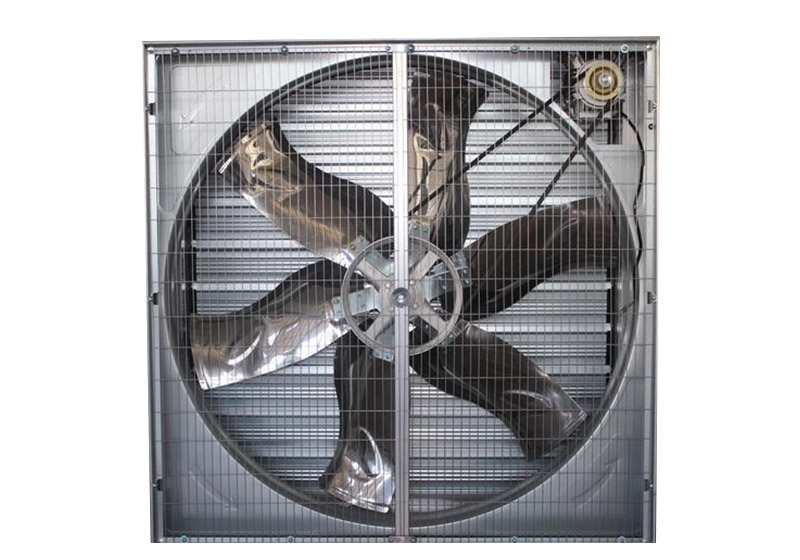

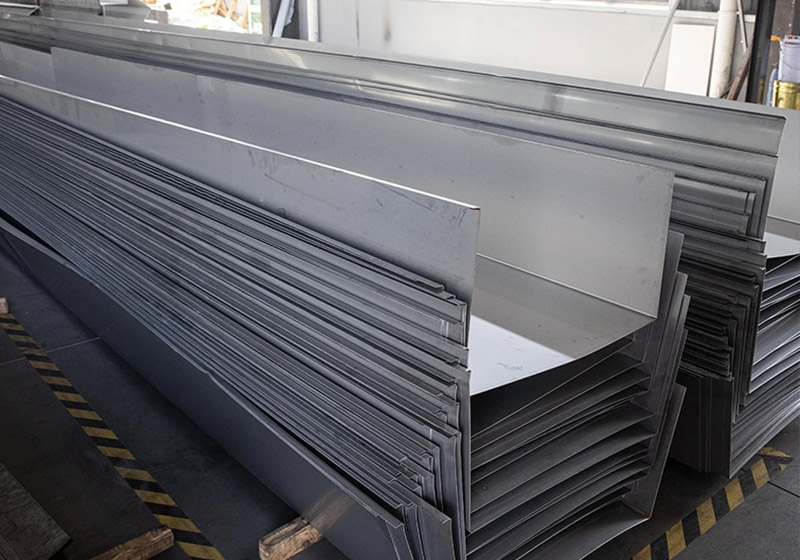

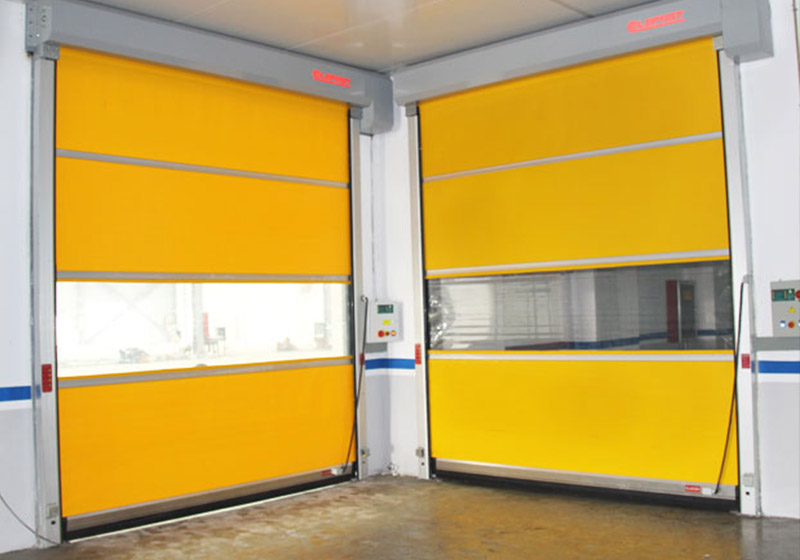

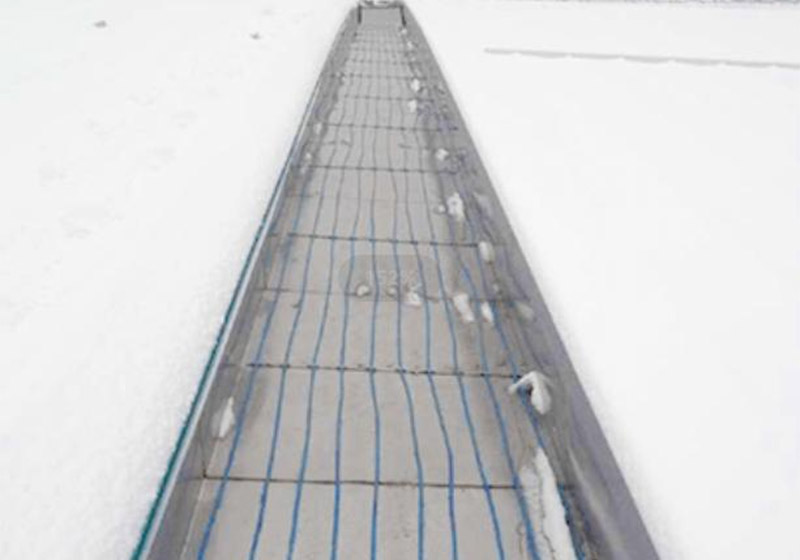

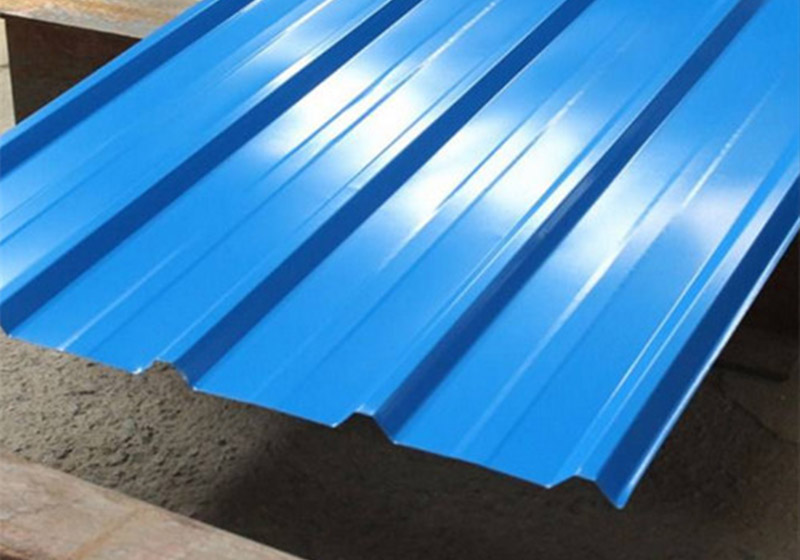

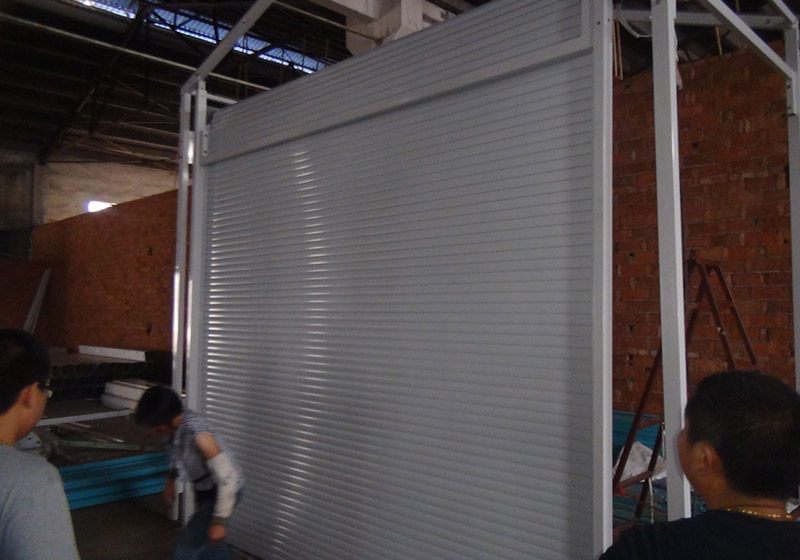

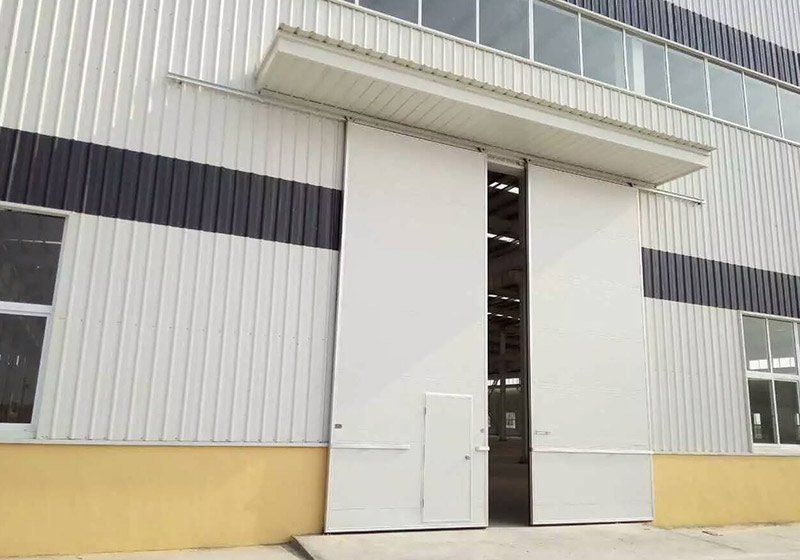

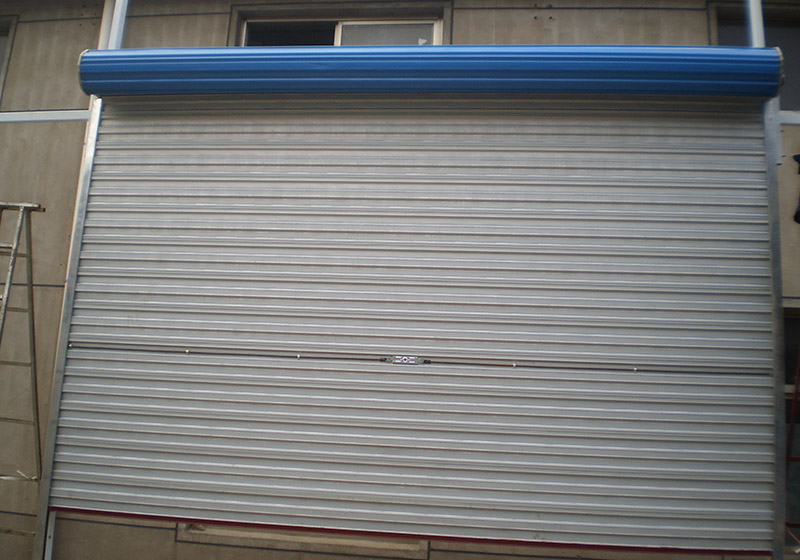

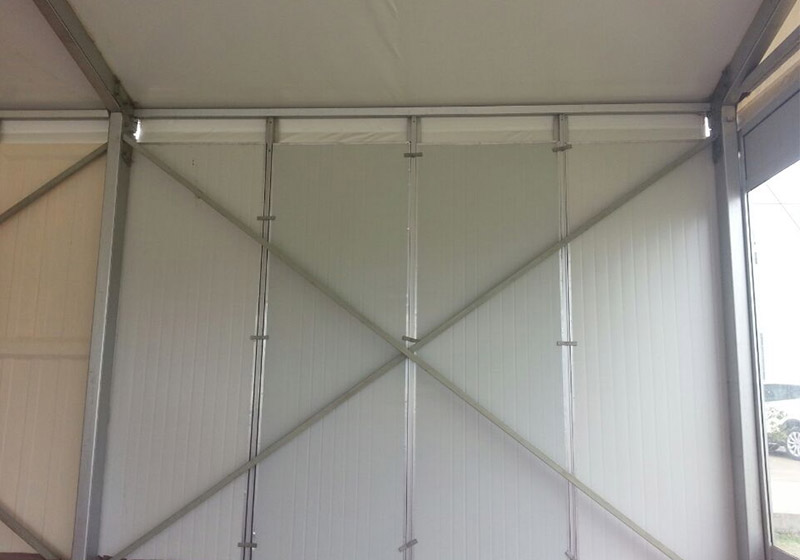

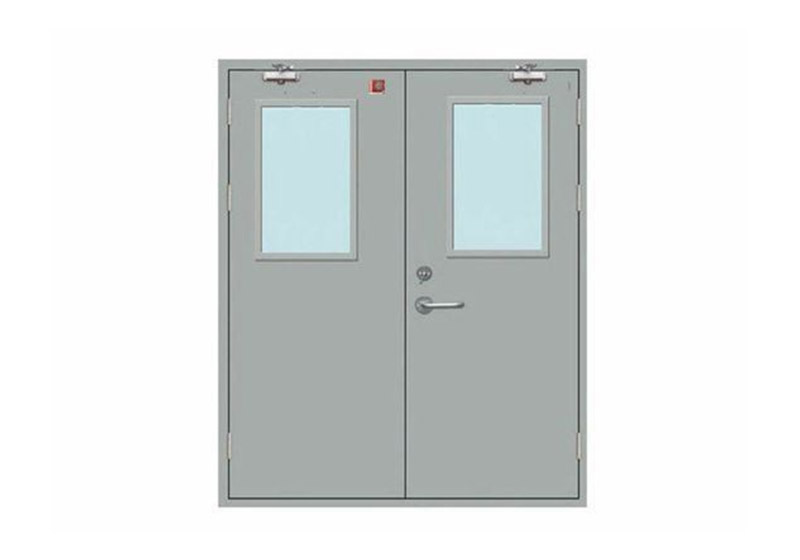

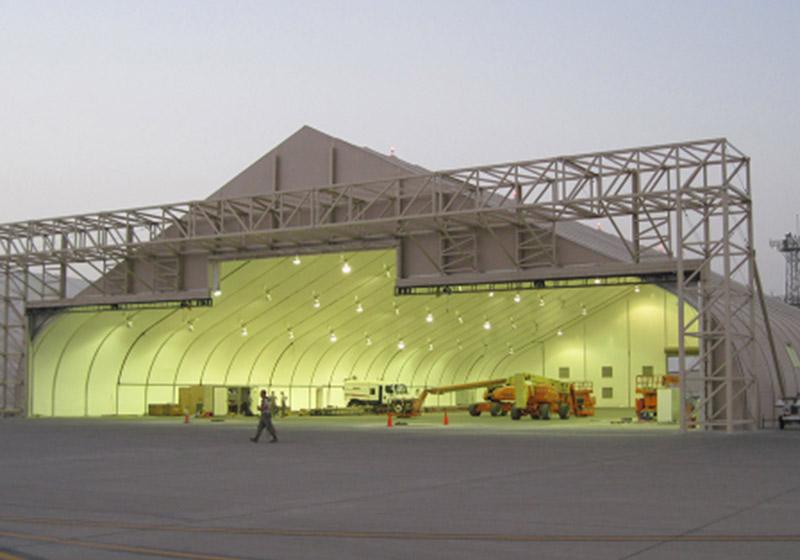

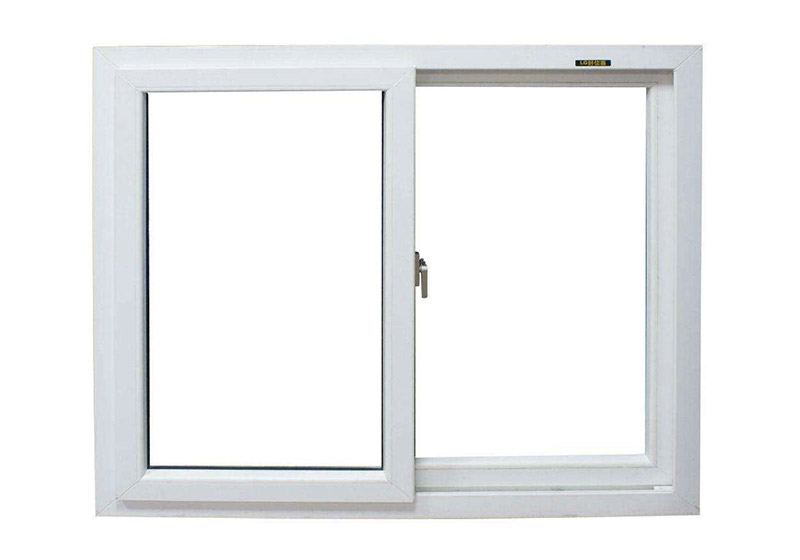

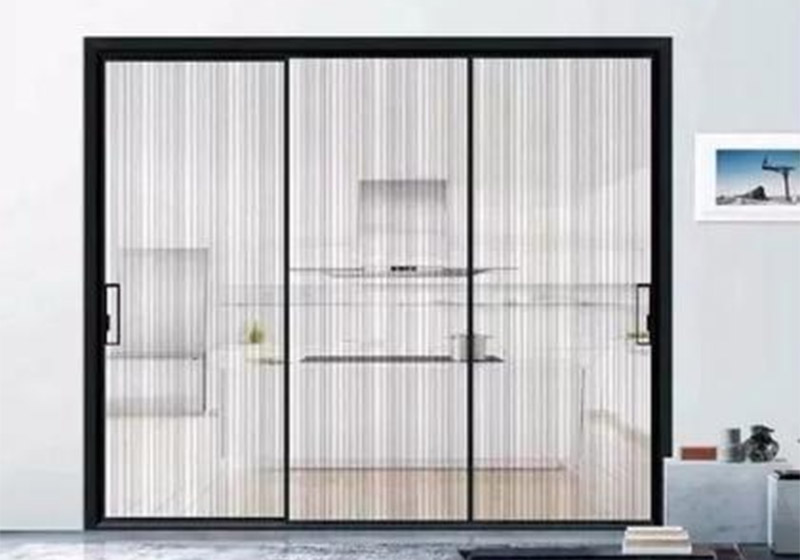

Tent Accessories
Get Your Custom Truss & Aluminum Tent Solutions
Get free designs, technical data and factory quotes. Explore our catalog for full specifications and cases.
Why choose HY Warehouse Tent
Cut costs far below brick warehouses, ready for operation within one week. Fully certified for bidding, all-weather resistant and pillar-free for flexible storage.
Up to 60% Cost Cut
Far cheaper than concrete stadiums, slash your sports venue investment.
5–10 Days Quick Installation
Fast build, put your arena into profitable operation rapidly.
Tender-Qualified Certified Engineering
Fully certified structures meeting official big sports project tender standards.
Reusable Modular Aluminum Frame
Disassemble, relocate and reuse frames for flexible venue adjustments.
All-Weather Stable Performance
Waterproof, UV-resistant & windproof for year-round outdoor sports use.
Fully Customizable Sizing
Tailor-made dimensions fit any scale of sporting events.
15+Years

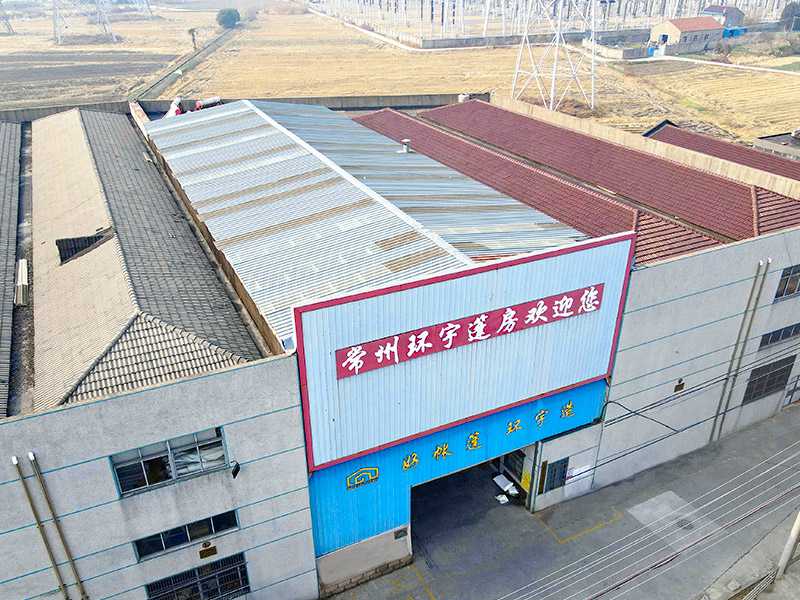

Factory Experience
10,000㎡
Factory Area
60+
Patents & Certifications
2,000+
Project Cases

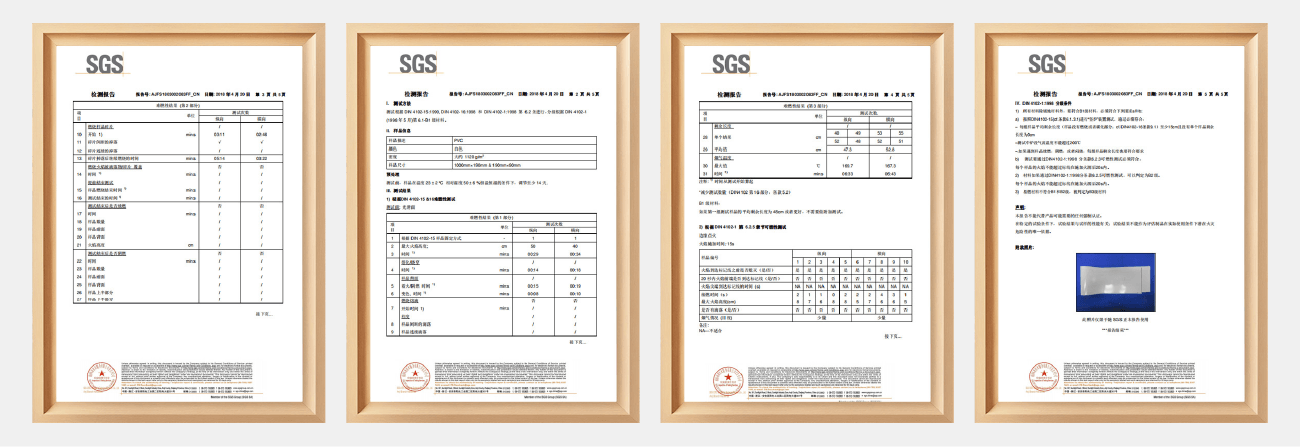

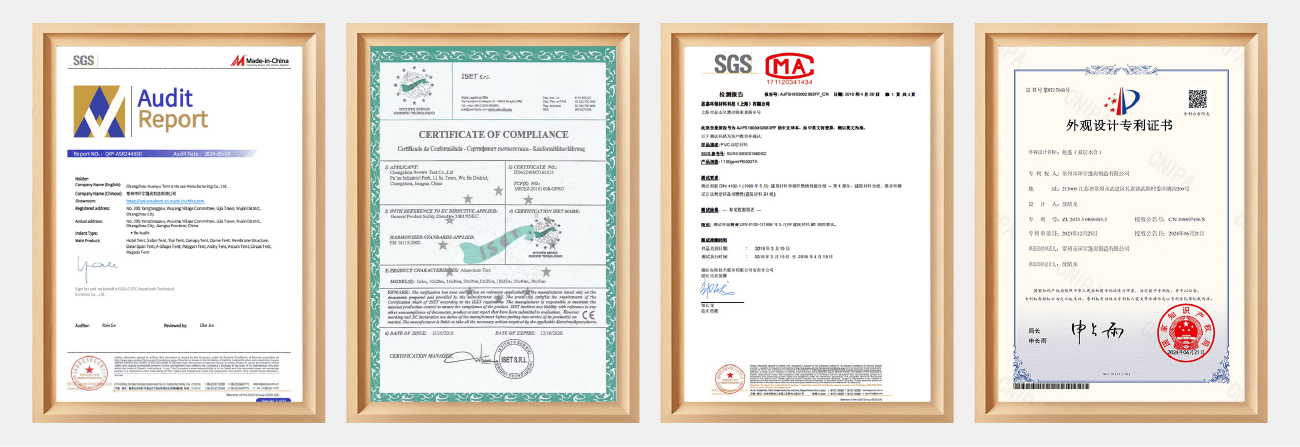

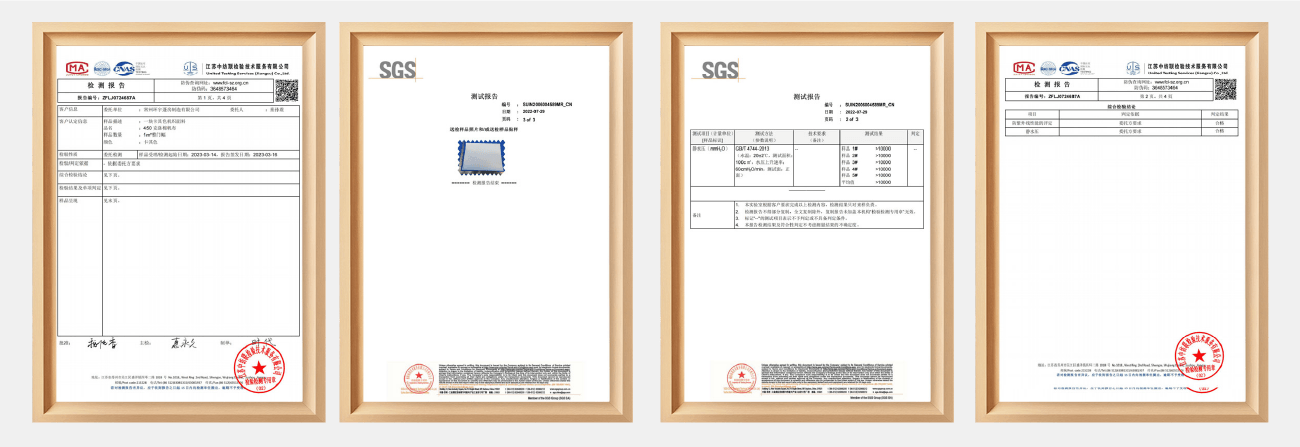

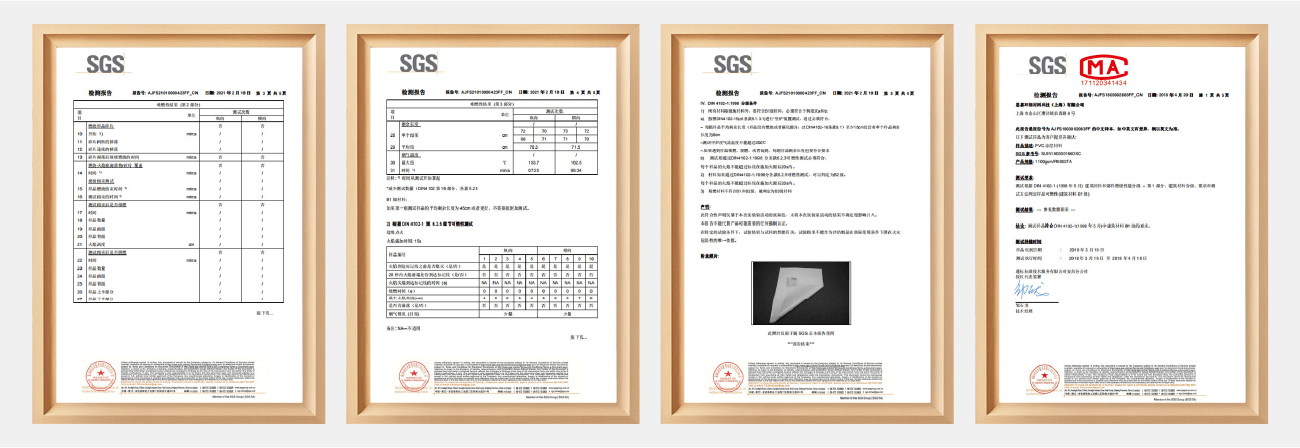

Standard Spec & Factory Certification
Auminum frame, B1/NFPA701 fre retardant PVC. 8o- 100kmh windproot, ollweather waterproof & UV resistont CE & SGS certified wih test reportsfor tender
Qualifications
Raw material & Performance
Get Your Custom Industrial Warehouse Tent Solution Now
Frequently Asked Questions about Warehouse Tent
- Q: What is the service life of your warehouse tents?A: Normally it can last 10-15 years under proper use and routine maintenance.
- Q: Can the warehouse tent resist strong wind and heavy snow?A: Standard products can withstand wind speed of 80-100km/h and 12cm snow load, with professional structural verification.
- Q: What material is the main frame made of?A: The frame is made of high-grade aluminum alloy with thick anodized coating for excellent anti-corrosion performance.
- Q: Is the tent fabric waterproof and UV resistant?A: Yes. We use double-sided PVC coated fabric, which is waterproof, UV-proof and durable.
- Q: Is the tent easy to install and dismantle?A: Adopting modular design, it is quick to assemble, disassemble and move, no complicated construction needed.
- Q: What application scenarios are these warehouse tents suitable for?A: They are widely used for industrial storage, temporary workshops, cargo transit and other commercial uses.
- Q: What after-sales services can you offer?A: We provide professional installation guidance and long-term technical support after sales.
