Types of Sports Court Tent

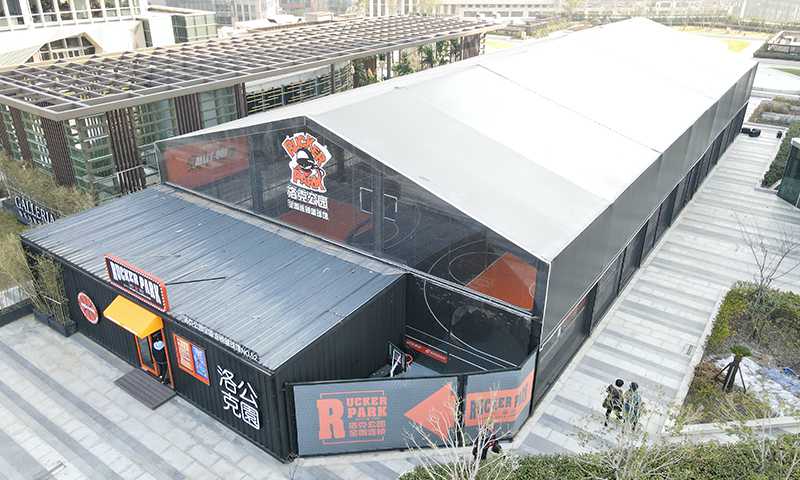

- A-Frame Tent Outdoor Sports Tent

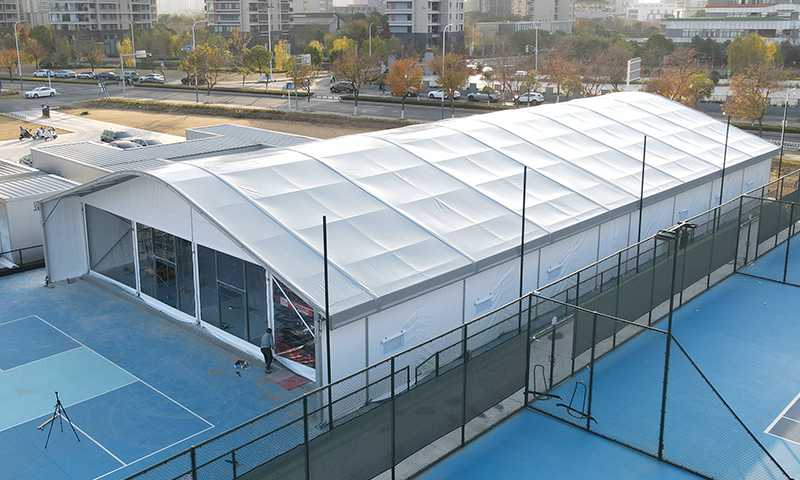

- Arcum Type Outside Sports Tent
- Polygon Sports Tent
- Curve Sports Tent

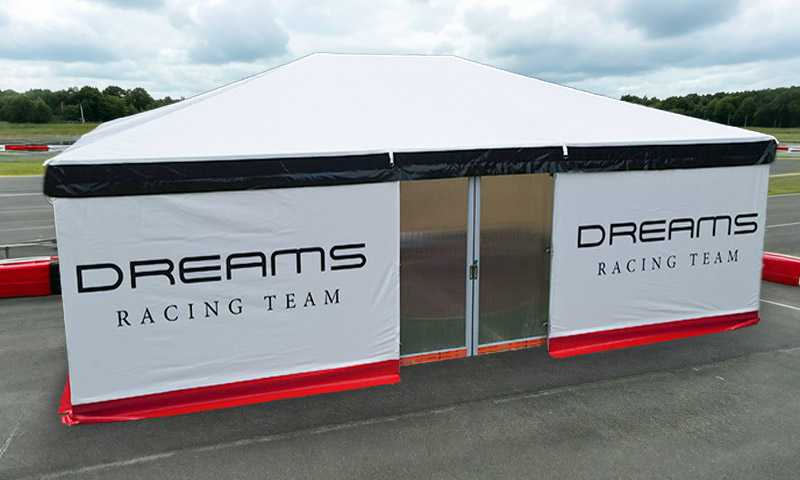

- Polygon Racing Sports Event Tent
- Adopts classic triangular A-shaped frame, solid structural stability.
- Simple assembly & disassembly, flexible for temporary small sports courts.
- Reliable basic wind resistance, meets conventional outdoor usage demands.
- Streamlined Arcum boosts natural daylight inside the venue.
- Optimized slope design ensures fast rainwater drainage, no ponding risk.
- Supports medium-to-large span sizes to accommodate more sports facilities.
- One-piece arch skeleton, completely column-free inner space with zero obstructions.
- High vertical clearance, enough headroom for jumping, serving and high-ball sports.
- Uniform force-bearing frame delivers excellent overall wind and snow resistance.
- Special curve streamline greatly reduces wind resistance coefficient.
- Enhanced load-bearing capacity adapts to harsh environments with heavy snow and strong winds.
- Smooth curved surface lowers wind pressure impact and prolongs service life.
Steep slope enables fast rain & snow drainage, avoiding ponding to safeguard vehicles and gear.
Elegant premium look fits racetracks, motor expos and official racing events.
Well-balanced load-bearing frame with great wind & snow resistance for long-term fixed racetrack use.
Popular Sports Court Tent Sizes
Tennis Court Sports Tent

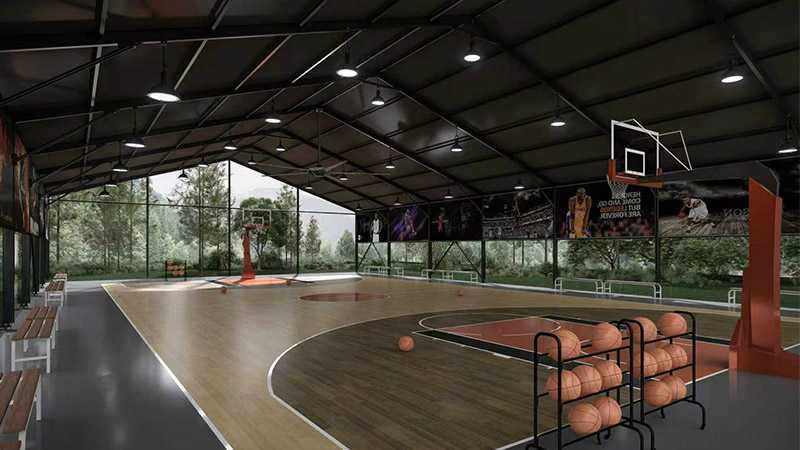

Basketball Court Tent Properties

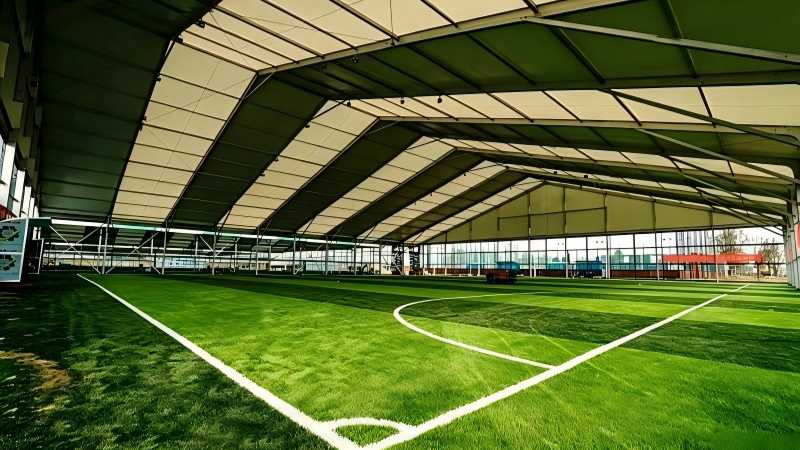

Football Pitch Tent Properties
Pickleball Court Sports Tent
| Item | Specification |
|---|---|
| Frame Material | 6061-T6 Hard-pressed Extruded Aluminum Alloy |
| Wind Resistance | 70~120km/h (reinforced type can be customized according to site requirements) |
| Fixing Solution | Ground anchor, expandable bolt, weight plate, concrete embedded parts, etc., suitable for different ground conditions |
| Service Life | ≥15 years for aluminum alloy frame, ≥5-8 years for fabric under normal use |
| Applicable Temperature | -30°C ~ +70°C, suitable for extreme high and low temperature environments Range |
| Side Wall Material | White PVC-coated polyester fabric, translucent/transparent optional, waterproof, flame retardant, 650g/m², UV-resistant |
| Applicable Ground Conditions | Grassland, earth land, asphalt, cement ground, marble, artificial turf, paddle tennis dedicated court flooring, etc. |
| Roof Cover Material | White PVC-coated polyester fabric, opaque/translucent optional, waterproof, flame retardant, 850g/m², UV-resistant & tear-resistant |
| Connectors | high-strength expansion bolts, rust-proof and anti-loose to ensure overall structural stability |
| Features of Frame | High strength, lightweight, corrosion-resistant, 4-channel modular design, easy to assemble and disassemble, reusable |
| Additional Functions | Optional supporting lighting system, ventilation equipment, surrounding nets, windproof curtains, air conditioning interfaces, etc. |
| Item | Specification |
|---|---|
| Main Frame Material | 6061-T6 Hard-pressed Extruded Aluminum Alloy, rustproof and durable |
| Aluminum Profile Size | 204×120×4mm / 256×121×5mm / 300×120×5mm (4-channel profile, matched by span) |
| Span Width | 15m (half court) / 20m (full court), maximum 60m |
| Length/Bay Distance | 40m (standard full court), unlimited customized length / 5m standard module |
| Eave Height | 4m / 5m (standard), 6m-8m (customized for professional competition) |
| Roof Fabric | 850g/m² white opaque PVC, waterproof, UV-resistant, flame retardant (DIN4102 B1/M2, NFPA701) |
| Sidewall Material | 650g/m² white PVC, optional glass wall / hard steel wall |
| Structure Design | Full clear span, no inner pole, 100% space utilization |
| Wind Resistance | 100km/h (standard), 120km/h (reinforced version) |
| Connector Material | Hot-dip galvanized steel, anti-rust |
| Fixing Method | Expansion bolt, ground anchor, weighting plate |
| Item | Specification |
|---|---|
| Main Frame Material | 6061-T6 Hard-pressed Extruded Aluminum Alloy, rustproof, lightweight and durable |
| Aluminum Profile Size | 256×121×5mm / 300×120×5mm (4-channel thickened profile for large span) |
| Span Width | 30m / 35m / 40m, maximum up to 60m |
| Length / Bay Distance | 50m / 60m (standard football pitch), unlimited customized length / 5m standard module |
| Eave Height | 6.5m / 7m (standard), 7.5m-8m (customized for professional match) |
| Roof Fabric | 850g/m² white opaque PVC, waterproof, UV-resistant, flame retardant (DIN4102 B1/M2, NFPA701) |
| Sidewall Material | 650g/m² white PVC, optional glass wall / hard steel wall / ABS wall |
| Structure Design | Full clear span design, no inner poles, 100% field space utilization |
| Wind Resistance | 100km/h (standard), 120km/h (reinforced version) |
| Connector Material | High-strength hot-dip galvanized steel, anti-rust & anti-corrosion |
| Fixing Method | Expansion bolt, ground anchor, weighting plate |
| Item | Specification |
|---|---|
| Main Frame Material | 6061-T6 Hard-pressed Extruded Aluminum Alloy, rustproof and durable |
| Aluminum Profile Size | 204×120×4mm / 256×121×5mm / 300×120×5mm (4-channel profile, matched by span) |
| Span Width | 10m (single court) / 20m (double court), maximum 60m |
| Length / Bay Distance | 20m (standard single court), unlimited customized length / 5m standard module |
| Eave Height | 4m / 5m (standard), 6m-8m (customized for professional competition) |
| Roof Fabric | 850g/m² white opaque PVC, waterproof, UV-resistant |
| Sidewall Material | 650g/m² white PVC, optional glass wall / hard steel wall / transparent PVC wall |
| Structure Design | Full clear span, no inner pole, 100% space utilization |
| Wind Resistance | 70km/h (standard), 100km/h (reinforced version) |
| Installation Ground | Cement, asphalt, grassland, soil ground, marble, pickleball court flooring |
| Fixing Method | Expansion bolt, ground anchor, weighting plate |
Why choose HY Sports Tent
Our sports arena tents slash costs by up to 60% against concrete stadiums, feature 5–10 days fast installation, certified wind & fire safety for official bids, reusable aluminum modular frames and all-weather waterproof, UV & wind resistant performance.
Up to 60% Cost Cut
Far cheaper than concrete stadiums, slash your sports venue investment.
5–10 Days Quick Installation
Fast build, put your arena into profitable operation rapidly.
Tender-Qualified Certified Engineering
Fully certified structures meeting official big sports project tender standards.
Reusable Modular Aluminum Frame
Disassemble, relocate and reuse frames for flexible venue adjustments.
All-Weather Stable Performance
Waterproof, UV-resistant & windproof for year-round outdoor sports use.
Fully Customizable Sizing
Tailor-made dimensions fit any scale of sporting events.
15+Years
Factory Experience
10,000㎡
Factory Area
60+
Patents & Certifications
2,000+
Project Cases

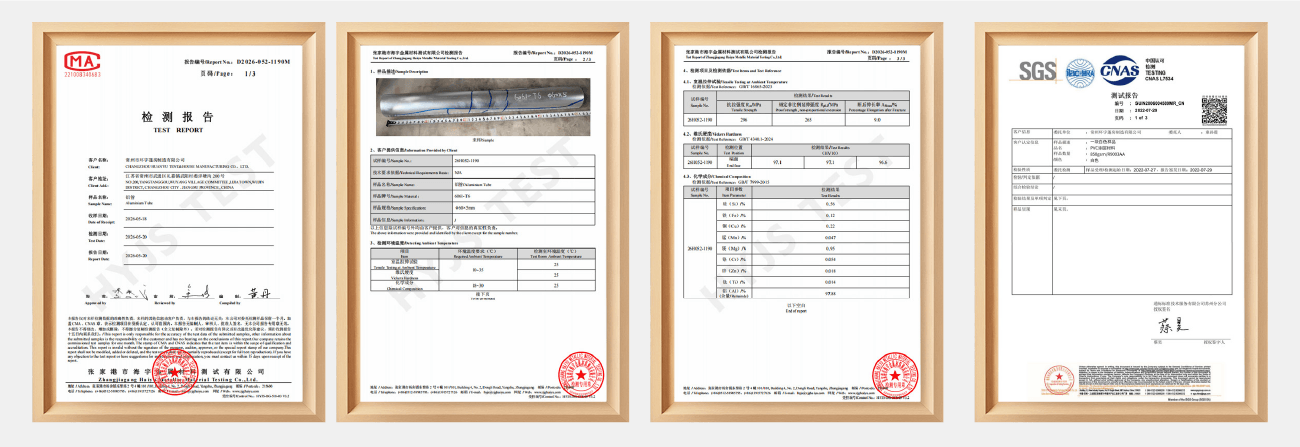

Standard Spec & Factory Certification
Aluminum frame, B1/NFPA701 fire-retardant PVC. 80–100km/h windproof, all-weather waterproof & UV-resistant. CE & SGS certified with test reports for tender.

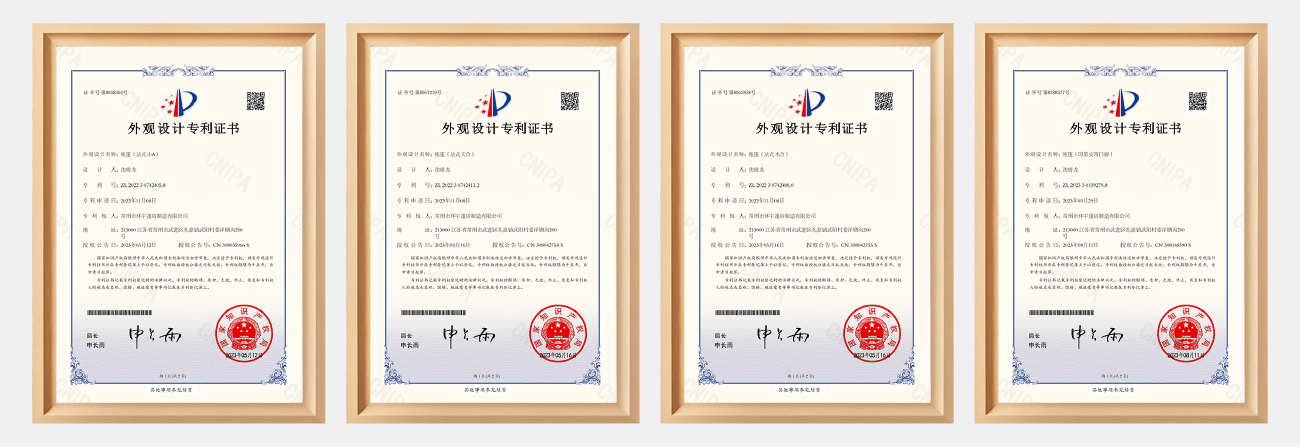

Qualifications
Raw material & Performance
Get Custom Sports Court Tent Solutions for Your Project
Frequently Asked Questions about Sports Tents
- Q: Why should I choose custom tents for sporting events instead of generic ones?A: Custom tents provide essential branding that boosts sponsor visibility and helps participants identify key areas like medical or info desks quickly.
- Q: Are these sports tents wind-resistant?A: Yes, our professional-grade sporting event tents are designed for outdoor use and include heavy-duty stakes and sandbags for stability.
- Q: Is your tent strong and stable enough? How about the wind loading?A: Yes.The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6) so our tent structure is safe and strong and can resist wind up to 100 km/hr.
- Q: What documents are available?A: A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided.Moreover, a customs declaration is provided.We provide one-stop service for you.
- Q: Does your tent be able to install repeatedly?A: Our tents can be assembled and dismantled and repeatedly with small transportation size.The lifespan of aluminium framework can reach 15-20 years, and 5-8 years for PVC fabrics depending on different conditions of usage.
- Q: What is the delivery time?A: The delivery time is within 15-20days after deposit received.
